Texas Instruments provides a recommended PCB layout in the TPS1101PWR datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for power modules.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. TI provides guidelines for capacitor selection in the datasheet, including recommended capacitor values and types. Additionally, the TI Power Stage Designer tool can be used to simulate and optimize the design.
The thermal derating curve for the TPS1101PWR is provided in the datasheet, which shows the maximum output current vs. ambient temperature. The curve indicates that the maximum output current decreases as the ambient temperature increases. Engineers should consider this derating curve when designing their system to ensure reliable operation.
Yes, the TPS1101PWR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications. However, engineers should consult the datasheet and relevant standards to ensure compliance with specific requirements.
TI provides troubleshooting guidelines in the datasheet and application notes, which cover common issues such as overvoltage or undervoltage faults, overcurrent protection, and thermal shutdown. Engineers can also use TI's online resources, such as the E2E forum, to seek help from experts and other users.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS1101PWR Overview

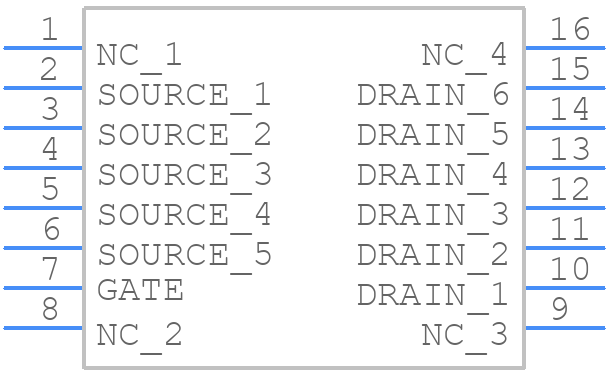

Use the download button to access the TPS1101PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS11,
or try a keyword search, such as Small Signal Field-Effect Transistors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
