TPS16630RGET - Texas Instruments

Description: 60V, 6A Power Limiting eFuse

Download TPS16630RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

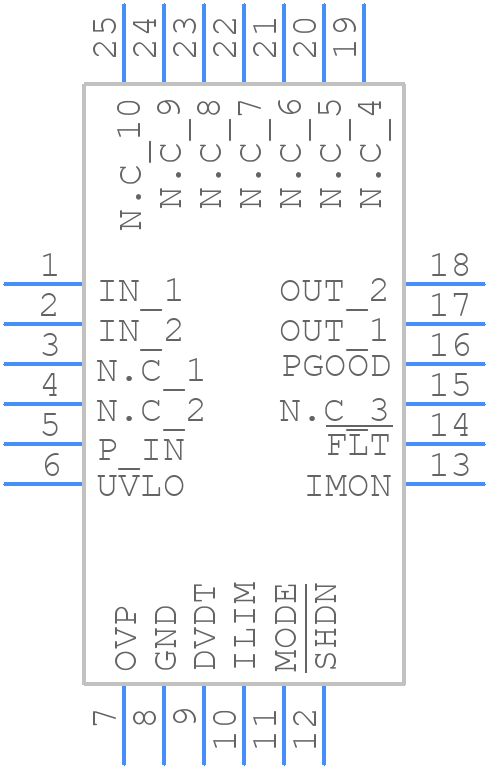

TPS16630RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS16630RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS16630RGET
click to zoom
3D Models
TPS16630RGET - Texas Instruments - 3D model - Quad Flat No-Lead - TPS16630RGET
click to zoom

TPS16630RGET Details

  • Manufacturer Part Number:

    TPS16630RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS16630RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS16630RGET involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. TI recommends using ceramic or film capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
  • The maximum ambient temperature for the TPS16630RGET is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. Ensure proper thermal design and heat sinking to maintain optimal performance.
  • The TPS16630RGET has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and the GND pin. The device will limit the output current when the voltage across Rs exceeds 50 mV. Adjust Rs to set the desired overcurrent threshold.
  • Yes, the TPS16630RGET is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, ensure that your specific application meets the device's operating conditions and that you follow proper design and testing procedures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS16630RGET Overview

Use the download button to access the TPS16630RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
