TPS2011APWP - Texas Instruments

Description: 1.2A, 2.7 to 5.5V Single High-Side MOSFET Switch IC, No Fault Reporting, Active-Low Enable

Download TPS2011APWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

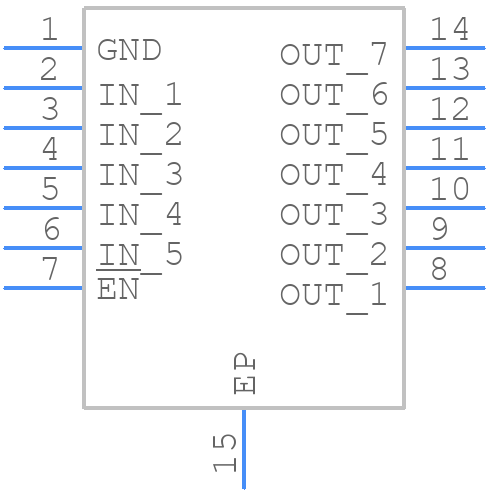

TPS2011APWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2011APWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - pwp (r-pdso-g14)-ren1
click to zoom
3D Models
TPS2011APWP - Texas Instruments - 3D model - Small Outline Packages - pwp (r-pdso-g14)-ren1
click to zoom

TPS2011APWP Details

  • Manufacturer Part Number:

    TPS2011APWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS2011APWP Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPS2011APWP is -40°C to 125°C. However, it's recommended to operate within -40°C to 85°C for optimal performance and reliability.
  • To ensure proper power-up and initialization, make sure to follow the recommended power-up sequence: VCC must be powered up before EN, and EN must be high before the output voltage is stable. Also, ensure that the input voltage is within the recommended range and that the output capacitor is properly sized.
  • The recommended output capacitor value is 10uF to 22uF, with an ESR of 0.1Ω to 1Ω. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance and stability.
  • The output voltage of the TPS2011APWP can be calculated using the following formula: VOUT = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. Make sure to choose the correct resistor values to achieve the desired output voltage.
  • The maximum input voltage that the TPS2011APWP can handle is 15V. However, it's recommended to operate within the recommended input voltage range of 2.7V to 12V for optimal performance and reliability.
