TPS2013DR - Texas Instruments

Description: Power Switch/Driver 1:1 N-Channel 1.5A 8-SOIC

Download TPS2013DR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

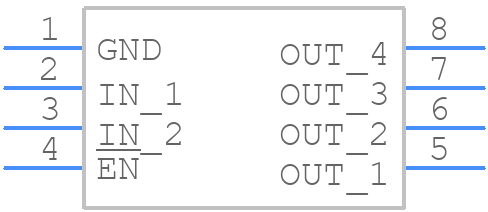

Symbol
TPS2013DR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2013DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TPS2013DR - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TPS2013DR Details

  • Manufacturer Part Number:

    TPS2013DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1994-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2013DR Frequently Asked Questions (FAQs)

  • The TPS2013DR can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The TPS2013DR has an internal power-on reset (POR) circuit that ensures the device is properly powered up and initialized. However, it's recommended to add an external capacitor (typically 1-10uF) between the VIN pin and GND to filter out noise and ensure a clean power-up sequence.
  • To minimize EMI and noise, it's recommended to place the TPS2013DR close to the power source, use a solid ground plane, and keep the input and output traces short and separate. Additionally, adding a ferrite bead or a common-mode choke can help filter out high-frequency noise.
  • Yes, the TPS2013DR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade and is also suitable for industrial and medical applications that require high reliability.
  • The power dissipation of the TPS2013DR can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. The thermal resistance (RθJA) is typically around 45°C/W for the TPS2013DR. You can use the thermal resistance to estimate the junction temperature (TJ) using the formula: TJ = TA + (RθJA x Pd).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2013DR Overview

Use the download button to access the TPS2013DR schematic symbol, PCB footprint, and 3D model.
