The maximum current rating of the TPS2042P is 2A per channel, but it can be limited by the thermal performance of the PCB and the device itself. It's recommended to check the thermal calculations and derate the current accordingly.
To ensure proper power-on and power-off sequencing, it's recommended to follow the power-up and power-down sequences outlined in the datasheet. Additionally, make sure to provide a stable input voltage and decouple the input voltage with a capacitor to prevent voltage droop.
The EN (enable) pin is used to enable or disable the output of the TPS2042P. When the EN pin is high, the output is enabled, and when it's low, the output is disabled. This pin can be used to implement power sequencing, fault detection, and other power management functions.
The TPS2042P has built-in OCP and SCP features. When an overcurrent or short-circuit condition is detected, the device will limit the current or shut down the output. To handle these events, it's recommended to implement a fault detection and response mechanism, such as using the FAULT pin to signal an error condition to the system controller.
To ensure proper thermal performance, it's recommended to follow the layout and thermal design guidelines outlined in the datasheet. This includes providing a solid ground plane, using thermal vias, and placing the device in a location with good airflow. Additionally, it's recommended to use a thermal pad or heat sink to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2042P Overview

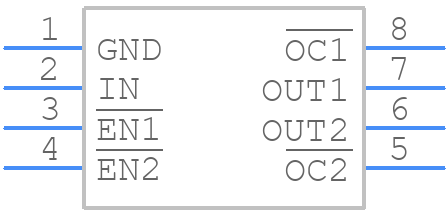

Use the download button to access the TPS2042P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
