The TPS2046AD can drive up to 10nF of capacitive load. However, it's recommended to limit the capacitive load to 4.7nF or less to ensure stability and prevent oscillations.
To ensure stability, it's recommended to use a minimum of 1uF ceramic capacitor at the input pin, and a 10uF electrolytic capacitor at the output pin. Additionally, keep the PCB layout clean and minimize the distance between the input and output capacitors.
The TPS2046AD can operate with an input voltage as low as 2.7V. However, the output voltage will be limited to 95% of the input voltage. For example, with a 2.7V input, the output voltage will be around 2.57V.
Yes, the TPS2046AD can be used as a high-current switch. It can handle up to 4A of continuous current and has a low on-state resistance of 70mΩ. However, it's essential to ensure that the device is properly heatsinked to prevent overheating.
The TPS2046AD has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. The OVP threshold is 6.5V, and the UVLO threshold is 2.2V. However, it's still recommended to add external protection circuitry, such as a voltage supervisor or a TVS diode, to ensure robust protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2046AD Overview

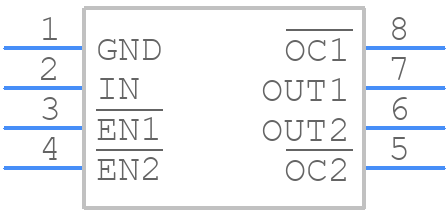

Use the download button to access the TPS2046AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
