TPS2054AD - Texas Instruments

Description: Power Switch ICs - Power Distribution Qd .345A 2.7-5.5V Hi

Download TPS2054AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

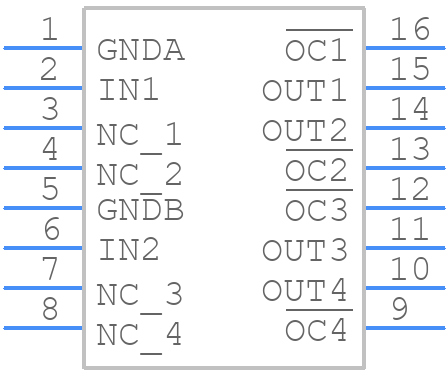

TPS2054AD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2054AD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
TPS2054AD - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

TPS2054AD Details

  • Manufacturer Part Number:

    TPS2054AD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2054AD Frequently Asked Questions (FAQs)

  • The maximum current limit for the TPS2054AD is 1.5A, but it can be adjusted using an external resistor (RSENSE) to a minimum of 100mA.
  • The sense resistor value can be calculated using the formula: RSENSE = 0.05V / I_LIM, where I_LIM is the desired current limit.
  • The EN (enable) pin is used to turn the switch on or off. A logic high on the EN pin enables the switch, while a logic low disables it. The EN pin can be connected to a microcontroller or other logic device to control the switch.
  • The TPS2054AD has a built-in thermal shutdown feature that turns off the switch when the junction temperature exceeds 150°C. The FAULT pin is an open-drain output that goes low when a fault condition occurs, such as overcurrent or thermal shutdown. The FAULT pin can be connected to a microcontroller or other logic device to detect and respond to fault conditions.
  • The recommended PCB layout for the TPS2054AD includes placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, the sense resistor should be placed close to the device and connected to the SENSE pin using a short, low-impedance trace.
