TPS2060DRBR - Texas Instruments

Description: 2-ch, 1.5A loading, 2.7-5.5V, 70mΩ USB power switch, active-low, reverse blocking

Download TPS2060DRBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

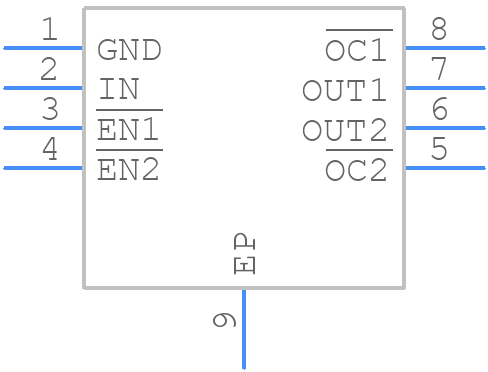

Symbol
TPS2060DRBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2060DRBR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B
click to zoom
3D Models
TPS2060DRBR - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B
click to zoom

TPS2060DRBR Details

  • Manufacturer Part Number:

    TPS2060DRBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2060DRBR Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2060DRBR is 2A, but it's recommended to limit the output current to 1.5A for reliable operation and to prevent overheating.
  • To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the QFN package, and to keep the ambient temperature below 85°C. Additionally, ensure that the PCB layout provides good thermal conductivity and airflow.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled and the output voltage is regulated. When EN is low, the device is disabled and the output voltage is turned off. The EN pin can be connected to a logic signal or a switch to control the power-on and power-off sequence.
  • The output voltage of the TPS2060DRBR can be adjusted by using an external resistor divider network between the VOUT pin and the GND pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage. Refer to the datasheet for the calculation formula and example circuits.
  • The minimum input voltage required for the TPS2060DRBR to operate is 2.7V, but it's recommended to use an input voltage of at least 3V to ensure reliable operation and to prevent undervoltage lockout (UVLO) from triggering.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TPS2060DRBR Overview

Use the download button to access the TPS2060DRBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
