The maximum current that can be drawn from the TPS2060DRBT is 2A, but it's recommended to limit the current to 1.5A for continuous operation to ensure reliable performance and to prevent overheating.
To ensure proper power-on and power-off, the EN pin should be driven high (above 1.4V) to turn on the device, and driven low (below 0.4V) to turn it off. Additionally, the input voltage should be stable and within the recommended range before turning on the device.
The EN (enable) pin is used to turn the device on and off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled, and the output is turned off. The EN pin can also be used to implement power-saving modes or to reset the device.
The TPS2060DRBT has built-in overcurrent protection (OCP) that limits the output current to prevent damage from excessive current. When an overcurrent event occurs, the device will limit the output current to a safe level, and the OCP flag will be set. The device will automatically recover once the overcurrent condition is removed.
The thermal shutdown temperature of the TPS2060DRBT is typically around 150°C. If the device junction temperature exceeds this threshold, the device will shut down to prevent damage. Once the device has cooled down, it will automatically recover and resume normal operation.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS2060DRBT Overview

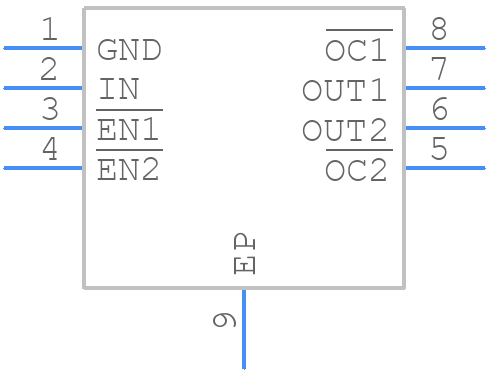

Use the download button to access the TPS2060DRBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
