TPS2064DGNRG4 - Texas Instruments

Description: Power Switch ICs - Power Distribution Single 1.5A Current-Limited

Download TPS2064DGNRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

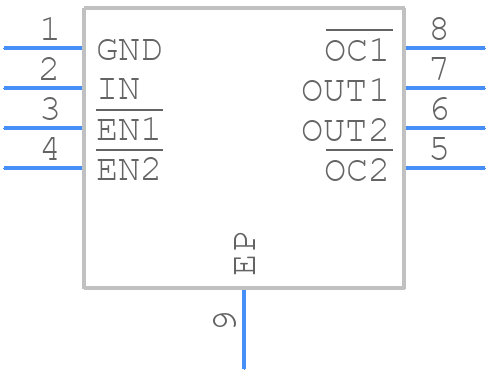

TPS2064DGNRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2064DGNRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2064DGNRG4 - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2064DGNRG4 Details

  • Manufacturer Part Number:

    TPS2064DGNRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.0005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2064DGNRG4 Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2064DGNRG4 is 2A, but it's recommended to limit the current to 1.5A for reliable operation and to prevent overheating.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a high-quality output capacitor with low ESR, and add a 10nF-100nF ceramic capacitor between the VIN and GND pins to filter out noise.
  • No, the TPS2064DGNRG4 is a low-dropout linear regulator (LDO) and not suitable for high-side switching applications. It's designed to regulate the output voltage and provide a stable voltage source, not to switch high currents.
  • The power dissipation of the TPS2064DGNRG4 can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. Make sure to consider the maximum junction temperature (TJ) and thermal resistance (RθJA) when calculating the power dissipation to ensure reliable operation.
  • The TPS2064DGNRG4 is not AEC-Q100 qualified, which is a standard for automotive-grade components. While it may be used in some automotive applications, it's not recommended for critical systems or applications that require high reliability and ruggedness.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2064DGNRG4 Overview

Use the download button to access the TPS2064DGNRG4 schematic symbol, PCB footprint, and 3D model.
