SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
0.09 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Switching:
MAKE-BEFORE-BREAK
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS2065CDGNR-2 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS2065CDGNR-2 is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines outlined in the datasheet, including setting the EN pin high, configuring the output voltage, and ensuring proper input capacitance.
For optimal performance, follow the recommended PCB layout and design guidelines in the datasheet, including minimizing trace lengths, using a solid ground plane, and placing input and output capacitors close to the device.
To manage thermal performance, ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet, including calculating the junction temperature and using thermal interface materials.
To minimize electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC), follow the recommended layout and design guidelines in the datasheet, including using shielding, filtering, and proper grounding techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2065CDGNR-2 Overview

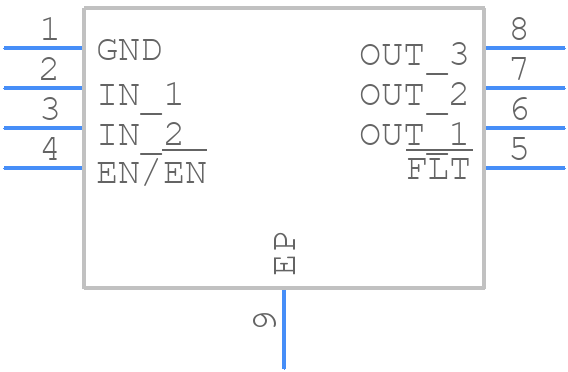

Use the download button to access the TPS2065CDGNR-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
