TPS2065DGN-1 - Texas Instruments

Description: Current-Limited, Power-Distribution Switches with Output Discharge resistor

Download TPS2065DGN-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

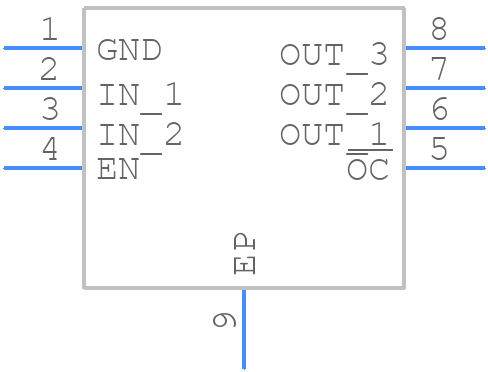

TPS2065DGN-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2065DGN-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2065DGN-1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2065DGN-1 Details

  • Manufacturer Part Number:

    TPS2065DGN-1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Trip Current:3A;Current Limit:1.9A;Thermal Shutdown:135C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2065DGN-1 Frequently Asked Questions (FAQs)

  • The maximum capacitance is limited by the device's output impedance and the desired output voltage ripple. As a general rule, a capacitance of 10uF to 22uF is recommended, but it's best to consult the application notes and perform simulations to determine the optimal capacitance for your specific design.
  • To ensure stability, follow the layout guidelines in the datasheet, keep the input and output capacitors close to the device, and use a low-ESR capacitor for the output. Additionally, make sure the input voltage is within the recommended range, and the output current is within the device's rating.
  • The minimum input voltage required for the TPS2065DGN-1 to operate is 2.7V, but it's recommended to use a minimum of 3V to ensure proper operation and to account for any voltage drops in the system.
  • The TPS2065DGN-1 is rated for operation up to 85°C, but it's recommended to derate the output current and voltage as the temperature increases to ensure reliable operation. Consult the datasheet and application notes for more information on thermal considerations.
  • Use a TVS (transient voltage suppressor) diode or a voltage clamp circuit to protect the input of the TPS2065DGN-1 from voltage surges and spikes. Additionally, consider adding a fuse or a current limiter to prevent overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2065DGN-1 Overview

Use the download button to access the TPS2065DGN-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
