TPS2065DGNR-1 - Texas Instruments

Description: Current-Limited, Power-Distribution Switches with Output Discharge resistor

Download TPS2065DGNR-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

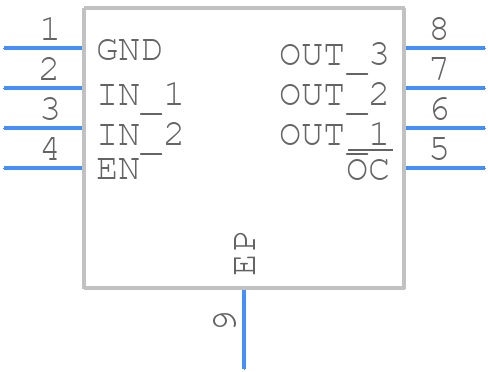

TPS2065DGNR-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2065DGNR-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2065DGNR-1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2065DGNR-1 Details

  • Manufacturer Part Number:

    TPS2065DGNR-1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2065DGNR-1 Frequently Asked Questions (FAQs)

  • The maximum capacitance depends on the application and the desired performance. However, as a general guideline, TI recommends using capacitors with a capacitance value between 1uF to 10uF. Larger capacitance values can be used, but may affect the stability and transient response of the device.
  • To ensure stability, follow the layout guidelines in the datasheet, use a low-ESR capacitor, and avoid long traces and loops in the power path. Additionally, add a 10nF to 100nF capacitor in parallel with the output capacitor to improve stability.
  • The minimum input voltage required for the TPS2065DGNR-1 to operate is 2.7V. However, the device can operate down to 2.5V with reduced performance and efficiency.
  • The TPS2065DGNR-1 is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. For high-temperature applications, consider using a device with a higher temperature rating or implementing thermal management techniques.
  • The power dissipation of the TPS2065DGNR-1 can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be obtained from the datasheet or calculated using the device's datasheet parameters.
