A good PCB layout for the TPS22920LYZPR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and configuration of the TPS22920LYZPR, follow the recommended power-up sequence: 1) Apply VCC, 2) Apply VIN, 3) Configure EN and MODE pins according to the desired operating mode. Also, ensure that the input voltage is within the recommended range and that the output capacitors are properly sized.
The TPS22920LYZPR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Additionally, the device has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. It's recommended to keep the device within a temperature range of -40°C to 125°C for optimal performance.
To troubleshoot issues with the TPS22920LYZPR, start by checking the input voltage, output voltage, and enable pin (EN) to ensure they are within the recommended ranges. Verify that the device is properly configured and that the output capacitors are properly sized. Use an oscilloscope to check for any oscillations or noise on the output. If issues persist, consult the datasheet and application notes for further guidance.
To minimize EMI with the TPS22920LYZPR, use a shielded inductor, keep the device and output capacitors close together, and use a common-mode choke on the input. Additionally, ensure that the PCB layout is designed to minimize radiated emissions and that the device is placed away from sensitive analog circuits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22920LYZPR Overview

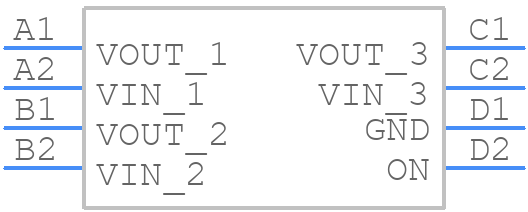

Use the download button to access the TPS22920LYZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Other Signal Circuits
