TPS22920LYZPT - Texas Instruments

Description: Power Switch ICs - Power Distribution Ultra-Low rON 4A SGL CH Load Switch

Download TPS22920LYZPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

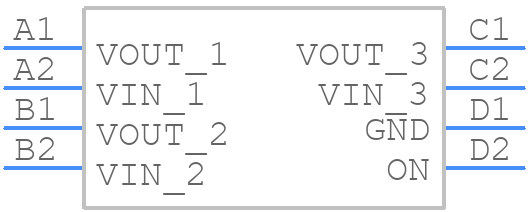

TPS22920LYZPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22920LYZPT - Texas Instruments PCB footprint - BGA - BGA - YZP0008 HEIGHT=0.5
click to zoom
3D Models
TPS22920LYZPT - Texas Instruments - 3D model - BGA - YZP0008 HEIGHT=0.5
click to zoom

TPS22920LYZPT Details

  • Manufacturer Part Number:

    TPS22920LYZPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B8

  • Length:

    1.904 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XFBGA

  • Package Equivalence Code:

    BGA8,2X4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, EXTREMELY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.75 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.904 mm

TPS22920LYZPT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, and using a solid ground plane to reduce noise and EMI.
  • The TPS22920LYZPT has a power-good output (PG) that indicates when the device is properly powered up and initialized. It's recommended to monitor the PG pin and wait for it to go high before enabling the output.
  • The TPS22920LYZPT can drive up to 10uF of capacitive load, but it's recommended to derate this value based on the specific application and operating conditions to ensure stability and prevent oscillations.
  • The output voltage of the TPS22920LYZPT can be adjusted by using an external resistor divider network between the output and the FB pin. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage.
  • The TPS22920LYZPT has a thermal derating of 1.5°C/W, which means that the maximum power dissipation decreases by 1.5W for every 1°C increase in junction temperature above 25°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS22920LYZPT Overview

Use the download button to access the TPS22920LYZPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
