TPS22925CNYPHR - Texas Instruments

Description: 3.6V, 3A, 9mΩ load switch with reverse current protection and optional quick output discharge

Download TPS22925CNYPHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

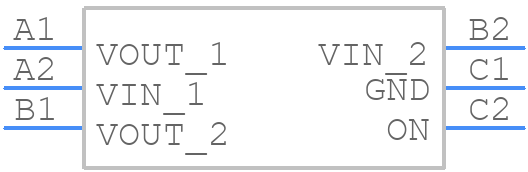

TPS22925CNYPHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22925CNYPHR - Texas Instruments PCB footprint - BGA - BGA - YPH0006
click to zoom
3D Models
TPS22925CNYPHR - Texas Instruments - 3D model - BGA - YPH0006
click to zoom

TPS22925CNYPHR Details

  • Manufacturer Part Number:

    TPS22925CNYPHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    Load switch

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    0.65 V

  • JESD-30 Code:

    R-XBGA-B6

  • JESD-609 Code:

    e1

  • Length:

    1.3625 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.65 V

  • Supply Voltage-Nom (Vsup):

    1 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.862 mm

TPS22925CNYPHR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS22925CNYPHR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's output should be decoupled from the input with a ferrite bead or a small inductor to prevent oscillation.
  • The TPS22925CNYPHR can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The TPS22925CNYPHR is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for thermal derating information and ensure proper thermal management in your design.
  • To troubleshoot issues with the TPS22925CNYPHR, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for oscillations or noise on the output. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines.
