A good PCB layout for the TPS22925CNYPHT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and power-down of the TPS22925CNYPHT, it's recommended to follow a controlled power-up sequence, where the input voltage is applied before the enable signal. During power-down, the enable signal should be turned off before the input voltage is removed. Additionally, it's recommended to add a soft-start circuit to limit the inrush current during power-up.
The TPS22925CNYPHT has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. The device can operate up to a junction temperature of 150°C, but it's recommended to keep the junction temperature below 125°C for optimal reliability. A thermal analysis should be performed to ensure the device operates within the recommended temperature range.
To troubleshoot issues with the TPS22925CNYPHT, start by verifying the input voltage and enable signal. Check the output voltage and current to ensure they are within the recommended specifications. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, check the PCB layout and ensure that it follows the recommended layout guidelines.
The TPS22925CNYPHT is a high-frequency device and can generate electromagnetic interference (EMI). To minimize EMI, it's recommended to use a shielded inductor, keep the PCB layout compact, and use a common-mode choke to filter the output. Additionally, ensure that the device is placed away from sensitive analog circuits and antennas.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22925CNYPHT Overview

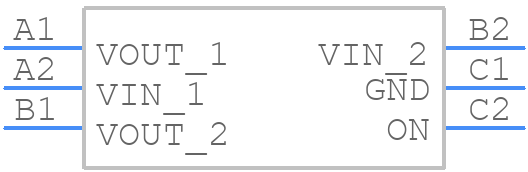

Use the download button to access the TPS22925CNYPHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
