TPS22949ADRGR - Texas Instruments

Description: CURRENT-LIMITED LOAD SWITCH WITH LOW NOISE REGULATION CAPACITY

Download TPS22949ADRGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

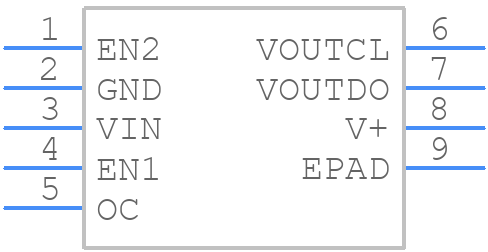

TPS22949ADRGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22949ADRGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRG0008A
click to zoom
3D Models
TPS22949ADRGR - Texas Instruments - 3D model - Small Outline No-lead - DRG0008A
click to zoom

TPS22949ADRGR Details

  • Manufacturer Part Number:

    TPS22949ADRGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • Input Voltage-Max:

    4.5 V

  • Input Voltage-Min:

    1.62 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS22949ADRGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, and using a solid ground plane to reduce noise and EMI.
  • The choice of input and output capacitors depends on the specific application and operating conditions. In general, X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The output capacitor should be chosen based on the desired output ripple and transient response.
  • The TPS22949ADRGR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system.
  • The TPS22949ADRGR has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides a detailed example of how to implement overcurrent protection.
  • Yes, the TPS22949ADRGR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
