1.90 X 0.90 MM, 0.50 MM PITCH, 0.50 MM HEIGHT, GREEN, DSBGA-8
Pin Count:
8
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Texas Instruments
YTEOL:
0
Adjustable Threshold:
NO
Analog IC - Other Type:
Load switch
Input Voltage-Max:
4.5 V
Input Voltage-Min:
1.62 V
JESD-30 Code:
R-XBGA-B8
JESD-609 Code:
e1
Length:
1.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Equivalence Code:
BGA8,2X4,20
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.5 mm
Supply Voltage-Max (Vsup):
4.5 V
Supply Voltage-Min (Vsup):
1.62 V
Supply Voltage-Nom (Vsup):
1.8 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.5 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
0.9 mm
TPS22949AYZPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLVA883. It's essential to follow these guidelines to minimize parasitic inductance and ensure proper operation.
The input capacitor value depends on the input voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 1-10 μF, with a voltage rating at least 1.5 times the input voltage. TI's Webench Power Designer tool can help with capacitor selection.
The TPS22949AYZPR has a maximum output current rating of 2 A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS22949AYZPR has a built-in overcurrent protection feature. To implement OCP, connect a sense resistor (Rs) between the output and GND, and set the OCP threshold voltage (Vocp) using an external resistor divider. The device will limit the output current to the set threshold during an overcurrent event.
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to implement power sequencing, shutdown, or low-power modes in your system.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS22949AYZPR Overview

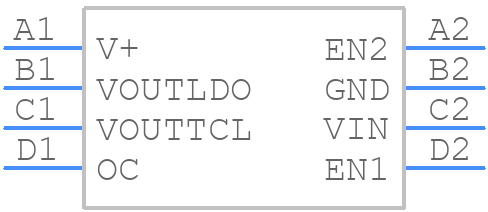

Use the download button to access the TPS22949AYZPR schematic symbol and PCB footprint.
