A good PCB layout for the TPS22958NDGKR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and power-down of the TPS22958NDGKR, it's recommended to follow a specific power-up sequence. First, apply the input voltage (VIN) to the device, then apply the enable signal (EN) to turn on the device. During power-down, remove the enable signal (EN) before removing the input voltage (VIN).
The maximum current rating of the TPS22958NDGKR is 5A. However, the actual current rating may be limited by the thermal performance of the device and the PCB. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
The TPS22958NDGKR has a built-in overcurrent protection feature that limits the output current to a maximum of 6A. If an overcurrent condition is detected, the device will automatically limit the output current to prevent damage. However, it's recommended to add external overcurrent protection circuitry to ensure reliable operation in fault conditions.
The recommended input capacitor value for the TPS22958NDGKR is 10uF to 22uF, with an ESR of 100mΩ or less. The input capacitor should be placed as close as possible to the device to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22958NDGKR Overview

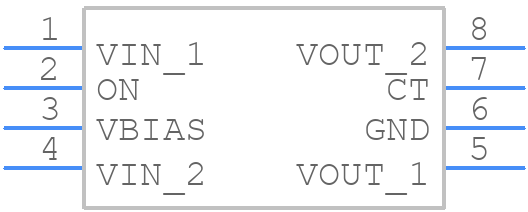

Use the download button to access the TPS22958NDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
