Part Image

TPS22960DCNR/BKN - Texas Instruments

Description: The TPS22960 is a small low-rON dual-channel load switch with controlled turnon. The devices contain two P-channel MOSFETs that can operate over an input voltage range of 1.62 V to 5.5 V. Each switch is independently controlled by on/off inputs (ON1 and ON2), which are capable of interfacing directly with low-voltage control signals. In TPS22960 a 85-Ω on-chip load resistor is added for quick discharge when the switch is turned off.

Download TPS22960DCNR/BKN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

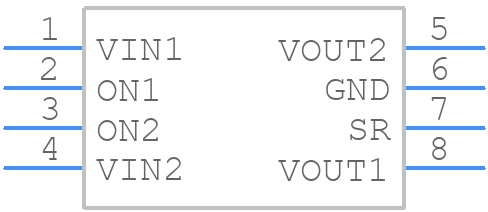

Symbol
TPS22960DCNR/BKN - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22960DCNR/BKN - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN
click to zoom
3D Models
TPS22960DCNR/BKN - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN
click to zoom

TPS22960DCNR/BKN Details

  • Manufacturer Part Number:

    TPS22960DCNR/BKN

  • Manufacturer:

    Texas Instruments

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS22960DCNR/BKN Overview

Use the download button to access the TPS22960DCNR/BKN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
