A good PCB layout for the TPS22965DSGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-frequency noise sources.
To ensure the TPS22965DSGR is properly configured for your specific application, you should carefully review the datasheet and application notes, and consider factors such as input voltage, output voltage, output current, and switching frequency. You may also want to consult with a Texas Instruments application engineer or use online design tools and calculators to help with the design process.
The TPS22965DSGR has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, you should consider the thermal resistance of the device, the PCB, and the surrounding environment. You can use thermal design tools and calculators to estimate the junction temperature, and take steps to reduce thermal resistance, such as using a heat sink or improving airflow.
To troubleshoot issues with the TPS22965DSGR, start by reviewing the datasheet and application notes, and checking the device's operating conditions, such as input voltage, output voltage, and output current. Use oscilloscopes and other diagnostic tools to measure the device's behavior, and consult with Texas Instruments support or online forums for additional guidance.
Yes, when using the TPS22965DSGR in a high-reliability or safety-critical application, you should consider factors such as fault tolerance, redundancy, and fail-safe operation. You may also need to comply with specific industry standards or regulations, such as IEC 61508 or ISO 26262. Consult with Texas Instruments support and industry experts to ensure the device is used in a way that meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22965DSGR Overview

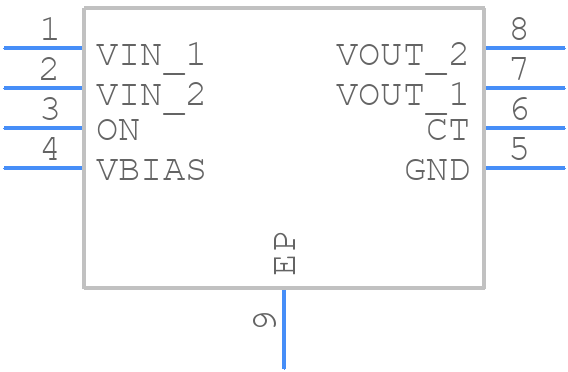

Use the download button to access the TPS22965DSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
