TPS22965TDSGTQ1 - Texas Instruments

Description: 5.5V, 4A, 16mΩ Automotive High-Side Load Switch With Adjustable Rise Time & Quick Output Discharge

Download TPS22965TDSGTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

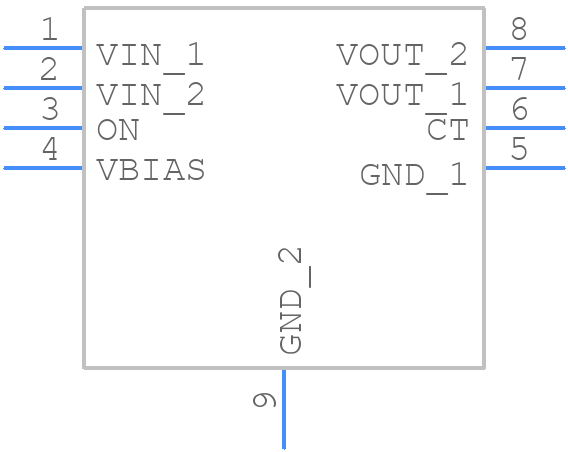

TPS22965TDSGTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22965TDSGTQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - BQ296103DSGR
click to zoom
3D Models
TPS22965TDSGTQ1 - Texas Instruments - 3D model - Small Outline No-lead - BQ296103DSGR
click to zoom

TPS22965TDSGTQ1 Details

  • Manufacturer Part Number:

    TPS22965TDSGTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22965TDSGTQ1 Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS22965TDSGTQ1 is 5A per channel, with a total current limit of 10A for both channels combined.
  • To ensure proper thermal management, it is recommended to provide a heat sink or thermal pad to the device, and to keep the ambient temperature below 85°C. Additionally, the device should be placed on a multi-layer PCB with thermal vias to dissipate heat effectively.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to control the power-on and power-off sequencing of the device.
  • The TPS22965TDSGTQ1 is a programmable power switch, and the output voltage can be configured using external resistors. The output voltage is determined by the ratio of the resistors connected to the FB (feedback) pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The PG pin is an open-drain output that indicates when the output voltage is within the specified regulation range. The PG pin can be used to monitor the output voltage and to generate a power-good signal for the system.
