TPS22965QWDSGRQ1 - Texas Instruments

Description: 5.5V, 4A, 16mΩ Automotive Load Switch With Adjustable Rise Time and Optional Quick Output Discharge

Download TPS22965QWDSGRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

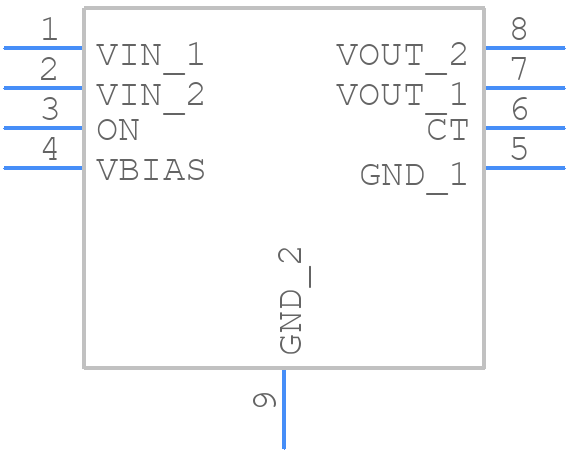

TPS22965QWDSGRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22965QWDSGRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
TPS22965QWDSGRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

TPS22965QWDSGRQ1 Details

  • Manufacturer Part Number:

    TPS22965QWDSGRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22965QWDSGRQ1 Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS22965QWDSGRQ1 is 5A per channel, with a total current limit of 10A for both channels combined.
  • To ensure proper thermal management, it is recommended to provide a heat sink or thermal pad to the device, and to keep the ambient temperature below 85°C. Additionally, ensure good airflow and avoid blocking the airflow around the device.
  • The recommended PCB layout for the TPS22965QWDSGRQ1 includes using a 4-layer PCB with a solid ground plane, and placing the device near the power source to minimize voltage drops. Additionally, use wide traces for the power and ground connections, and keep the signal traces away from the power traces.
  • The TPS22965QWDSGRQ1 can be programmed using the I2C interface. The device has a set of registers that can be accessed and modified using I2C commands. Refer to the datasheet for the register map and programming guidelines.
  • The typical rise time of the TPS22965QWDSGRQ1 is 100ns, and the typical fall time is 50ns. However, these values can vary depending on the load capacitance and the output voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS22965QWDSGRQ1 Overview

Use the download button to access the TPS22965QWDSGRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
