TPS22968QDMGRQ1 - Texas Instruments

Description: 5.5V, 4A, 27mΩ, 2-Ch Automotive Load Switch With Quick Output Discharge and Adjustable Rise Time

Download TPS22968QDMGRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

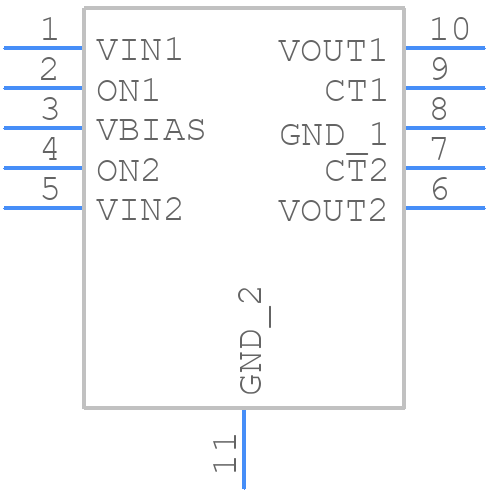

TPS22968QDMGRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22968QDMGRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DMG0010A
click to zoom
3D Models
TPS22968QDMGRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DMG0010A
click to zoom

TPS22968QDMGRQ1 Details

  • Manufacturer Part Number:

    TPS22968QDMGRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22968QDMGRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS22968QDMGRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Texas Instruments provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. The TPS22968QDMGRQ1 also has a built-in stability compensation network, which helps to prevent oscillation.
  • The TPS22968QDMGRQ1 can handle input voltages up to 5.5V. However, it's recommended to operate the device within the specified input voltage range of 2.3V to 5.5V for optimal performance and reliability.
  • The TPS22968QDMGRQ1 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
