A good PCB layout for the TPS22968QDMGTQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended PCB layout, use the recommended input and output capacitors, and keep the device's input voltage within the recommended range. Additionally, ensure that the output capacitor's ESR is within the recommended range and that the device is not subjected to high-frequency noise or voltage transients.
The TPS22968QDMGTQ1 is a high-current switch, and its maximum current delivery depends on the input voltage and the output voltage. According to the datasheet, the device can deliver up to 3.5A of continuous current, but this can be limited by the thermal performance of the device and the PCB.
The TPS22968QDMGTQ1 has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external voltage supervisors or voltage monitors to detect and respond to overvoltage and undervoltage conditions.
The TPS22968QDMGTQ1 has a thermal shutdown feature that turns off the device when it exceeds a junction temperature of 150°C. To ensure the device does not overheat, make sure to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device's power dissipation within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22968QDMGTQ1 Overview

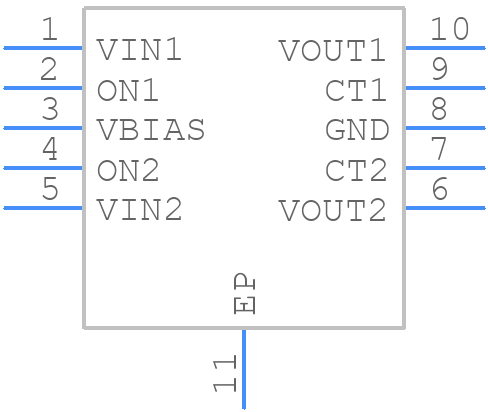

Use the download button to access the TPS22968QDMGTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
