A good PCB layout for the TPS22976NDPUR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's output should be decoupled from the input with a ferrite bead or a small inductor to prevent oscillations.
The TPS22976NDPUR can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
The TPS22976NDPUR is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. For high-temperature applications, consider using a heat sink or a thermal pad to keep the device temperature within the recommended range.
To troubleshoot issues, start by checking the input and output voltages, and the device's operating frequency. Verify that the input and output capacitors are of the correct value and type, and that the PCB layout follows the recommended guidelines. Use an oscilloscope to check for oscillations or noise on the output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22976NDPUR Overview

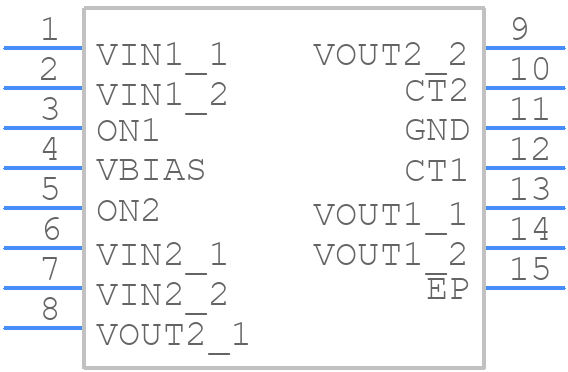

Use the download button to access the TPS22976NDPUR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
