TPS22999YCHR - Texas Instruments

Description: Power Switch ICs - Power Distribution TPS22999

Download TPS22999YCHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

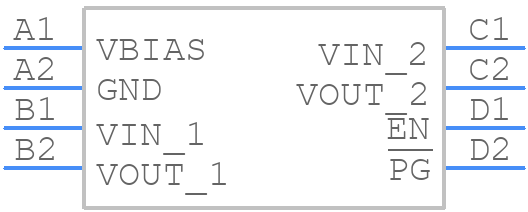

Symbol
TPS22999YCHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22999YCHR - Texas Instruments PCB footprint - BGA - BGA - YCH0008-2026
click to zoom
3D Models
TPS22999YCHR - Texas Instruments - 3D model - BGA - YCH0008-2026
click to zoom

TPS22999YCHR Details

  • Manufacturer Part Number:

    TPS22999YCHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Thermal Shutdown:131C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.1 V

  • JESD-30 Code:

    R-XBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.38 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.4 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    0.1 V

  • Supply Voltage-Nom (Vsup):

    0.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +1.85V

  • Width:

    0.68 mm

TPS22999YCHR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, but it's recommended to consult the datasheet and perform simulations to determine the optimal value for your specific application.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The TPS22999YCHR has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage through a resistor. The value of the resistor determines the overcurrent threshold. Consult the datasheet for more information on how to implement overcurrent protection.
  • During startup, the device has a soft-start feature that ramps up the output voltage to prevent inrush currents. During shutdown, the device has an undervoltage lockout feature that prevents the device from operating until the input voltage reaches a minimum threshold. Consult the datasheet for more information on startup and shutdown behavior.
