The maximum input voltage that can be applied to the TPS2300IPW is 5.5V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V for optimal performance and reliability.
To ensure the TPS2300IPW is properly powered up and initialized, make sure to follow the power-up sequence specified in the datasheet. This typically involves applying a valid input voltage, waiting for the internal voltage regulator to stabilize, and then enabling the device by setting the EN pin high.
The EN (enable) pin is used to enable or disable the TPS2300IPW. When the EN pin is set high, the device is enabled and operates normally. When the EN pin is set low, the device is disabled and enters a low-power shutdown mode. This pin can be used to control the power consumption of the device or to implement power-saving features in your design.
The TPS2300IPW has a fixed output voltage of 3.3V. However, if you need a different output voltage, you can use an external resistor divider network to adjust the output voltage. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
The maximum output current that the TPS2300IPW can deliver is 3A. However, the actual output current may be limited by the input voltage, output voltage, and thermal considerations. Be sure to check the datasheet for the recommended operating conditions and thermal derating factors.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2300IPW Overview

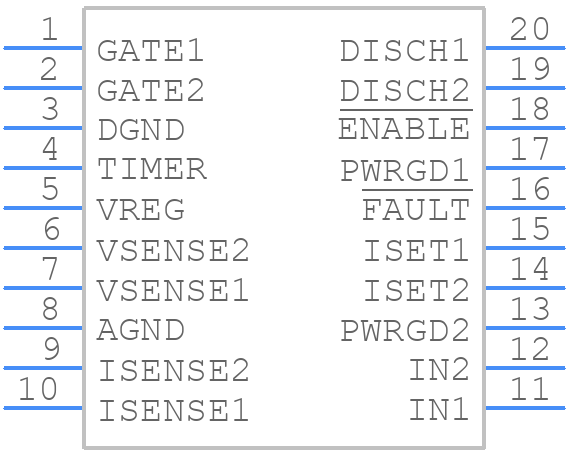

Use the download button to access the TPS2300IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
