Texas Instruments provides a recommended PCB layout in the TPS2301IPW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating higher than the input voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the high-frequency switching of the TPS2301IPW.
The TPS2301IPW has an operating junction temperature range of -40°C to 150°C. However, the maximum ambient temperature depends on the specific application and the thermal management design. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation and to prevent overheating.
Yes, the TPS2301IPW is suitable for high-reliability and automotive applications. It is qualified to the AEC-Q100 standard, which ensures it meets the stringent requirements for automotive systems. Additionally, Texas Instruments provides a range of documentation and support to help designers meet the requirements of high-reliability applications.
To troubleshoot issues with the TPS2301IPW, start by reviewing the datasheet and application notes to ensure the device is used within its recommended operating conditions. Check the PCB layout, component selection, and thermal management design for any potential issues. Use oscilloscopes and other diagnostic tools to measure the input and output voltages, currents, and temperatures. Consult the Texas Instruments support resources, including the TPS2301IPW forum and technical documentation, for guidance on troubleshooting and resolving common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2301IPW Overview

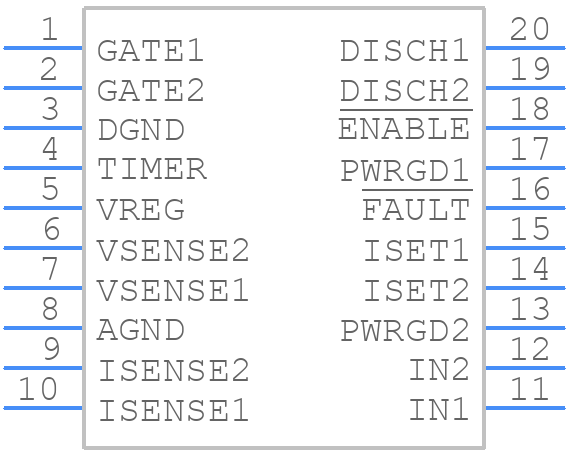

Use the download button to access the TPS2301IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
