Texas Instruments provides a recommended PCB layout in the TPS2320ID datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
The input capacitors should be selected based on the input voltage range, ripple current, and ESR (Equivalent Series Resistance) requirements. A minimum of 10uF ceramic capacitor with an ESR of less than 100mΩ is recommended. Additionally, the capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stability.
The TPS2320ID is capable of delivering up to 2A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It is essential to ensure that the device is operated within its recommended operating conditions to avoid overheating and ensure reliability.
The TPS2320ID has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. When the output current exceeds the set threshold, the device will enter a shutdown state to protect the load and the device itself.
The EN (Enable) pin is used to enable or disable the TPS2320ID. When the EN pin is pulled high, the device is enabled, and when it is pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power standby modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2320ID Overview

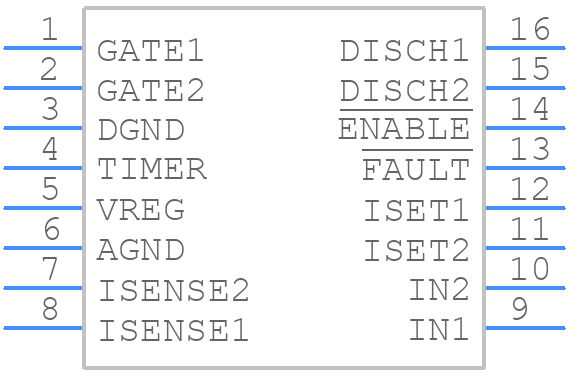

Use the download button to access the TPS2320ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
