TPS2331ID - Texas Instruments

Description: Texas Instruments TPS2331ID, Hot Swap Controller, 14-Pin, SOIC

Download TPS2331ID Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

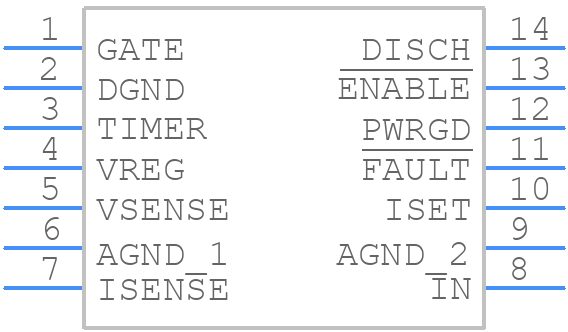

TPS2331ID - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2331ID - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G14)
click to zoom
3D Models
TPS2331ID - Texas Instruments - 3D model - Small Outline Packages - D (R-PDSO-G14)
click to zoom

TPS2331ID Details

  • Manufacturer Part Number:

    TPS2331ID

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    REQUIRES 3V TO 5.5V SUPPLY FOR CHANNEL 2

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    13 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    13 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2331ID Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output traces short and separate, and using a solid ground plane to reduce noise and EMI.
  • The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. A general rule of thumb is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
  • The TPS2331ID is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C to prevent thermal shutdown.
  • The TPS2331ID has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold can be set by selecting the appropriate resistor values. The datasheet provides more detailed information on implementing OVP with the TPS2331ID.
  • The TPS2331ID can operate with an input voltage as low as 2.7V, but the minimum input voltage required for proper operation depends on the output voltage and current. A general rule of thumb is to ensure that the input voltage is at least 1V higher than the output voltage to maintain a stable output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2331ID Overview

Use the download button to access the TPS2331ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
