A good PCB layout for the TPS23523PWT involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize inductance and resistance. Additionally, it's recommended to use a common ground point for the input and output returns to reduce noise and improve stability.
The input capacitor should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A general rule of thumb is to use a capacitor with a value of 10-22uF, X5R or X7R dielectric, and a voltage rating of 1.5-2 times the input voltage. The capacitor should also be placed as close to the VIN pin as possible to minimize noise and improve stability.
The TPS23523PWT can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and ambient temperature. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS23523PWT has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold, and the device will limit the output current to prevent damage in the event of a fault.
The EN pin is an active-high enable input that allows the device to be turned on and off. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23523PWT Overview

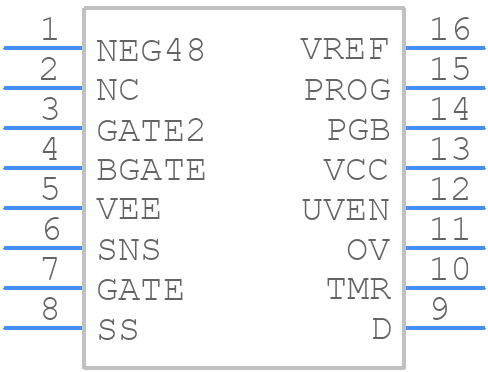

Use the download button to access the TPS23523PWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
