TPS2358RGZR - Texas Instruments

Description: Hot Swap Controller, OR Controller 4 Channel ATCA, MicroTCA™ 48-VQFN (7x7)

Download TPS2358RGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

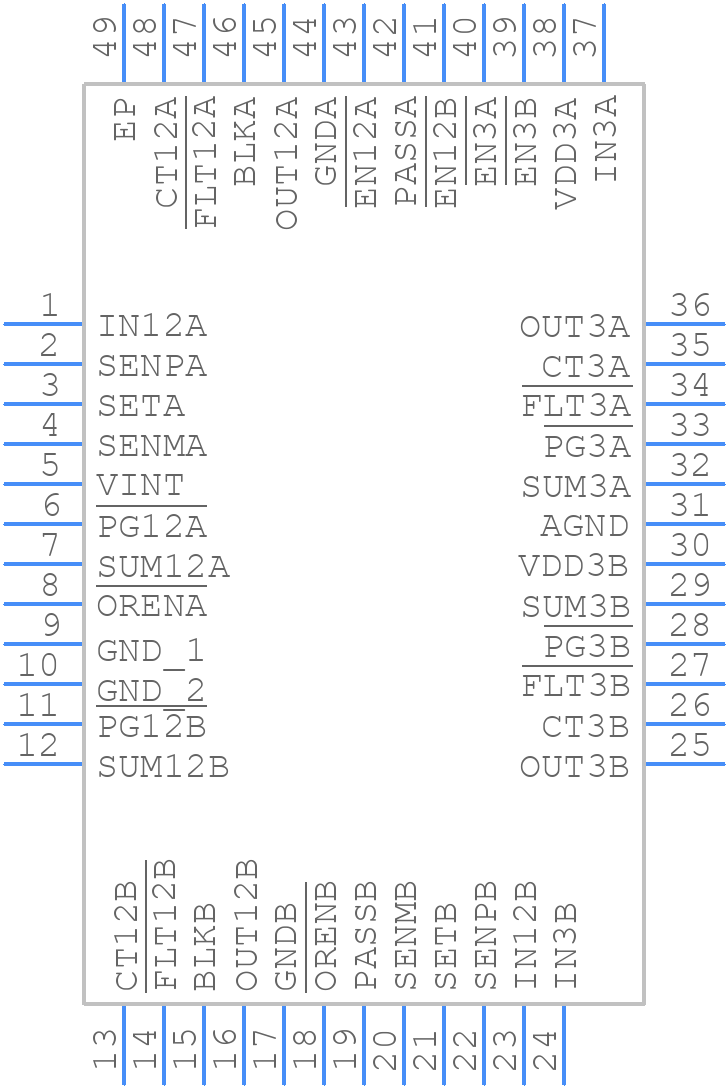

Symbol
TPS2358RGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2358RGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
TPS2358RGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

TPS2358RGZR Details

  • Manufacturer Part Number:

    TPS2358RGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    8.5 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    4 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +10.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS2358RGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLVA883. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
  • The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. TI provides a formula in the datasheet (Equation 1) to calculate the sense resistor value. Additionally, the application note SLVA883 provides guidance on selecting the optimal sense resistor value.
  • The EN (Enable) pin is used to enable or disable the hot swap controller. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device during shutdown or low-power modes.
  • The TPS2358RGZR has a built-in inrush current limiter that helps to limit the inrush current during hot plug events. However, it's still important to consider the inrush current requirements of the downstream devices and design the system accordingly. TI provides guidance on inrush current limiting in the application note SLVA883.
  • The TPS2358RGZR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to consider the thermal design and ensure proper heat dissipation to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2358RGZR Overview

Use the download button to access the TPS2358RGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
