TPS2358RGZT - Texas Instruments

Description: Dual-Slot ATCA AdvancedMC™ Controller

Download TPS2358RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

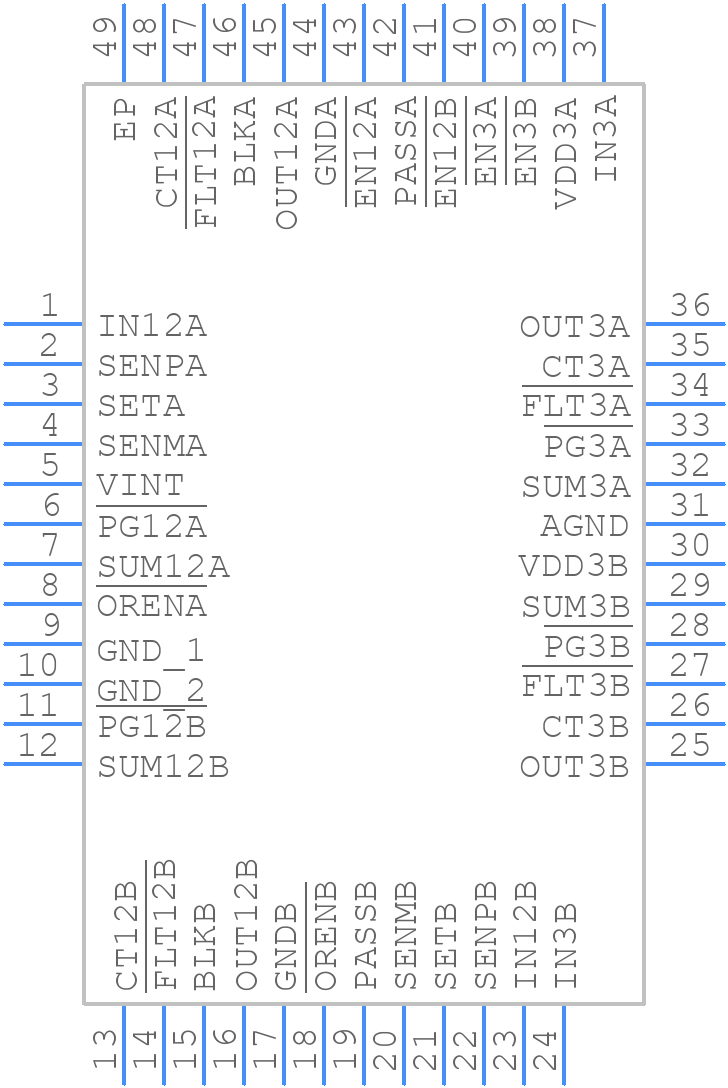

TPS2358RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2358RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
TPS2358RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

TPS2358RGZT Details

  • Manufacturer Part Number:

    TPS2358RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    8.5 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    4 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +10.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TPS2358RGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS2358 application note (SLVAUH5) that includes guidelines for component placement, routing, and thermal management to minimize noise and ensure reliable operation.
  • The sense resistor value depends on the current sensing range and accuracy required. TI provides a sense resistor calculator tool (TPS2358 Sense Resistor Calculator) that helps determine the optimal sense resistor value based on the input parameters.
  • The maximum cable length supported by the TPS2358RGZT depends on the specific application and the type of cable used. As a general guideline, TI recommends keeping the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise. For longer cable lengths, additional signal conditioning or buffering may be required.
  • The TPS2358RGZT is rated for operation up to 125°C (TJ). However, the device's performance and accuracy may degrade at higher temperatures. TI recommends consulting the datasheet and application notes for guidance on using the device in high-temperature environments and ensuring proper thermal management.
  • TI provides a troubleshooting guide (TPS2358 Troubleshooting Guide) that covers common issues and their solutions. Additionally, engineers can consult the datasheet, application notes, and online forums for further assistance.
