A good PCB layout for the TPS2372-4RGWT involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, decoupling capacitors should be placed close to the device's power pins.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and ensure the input voltage is within the recommended range. Also, configure the device's registers according to the datasheet and application notes.
The TPS2372-4RGWT has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow, use a heat sink if necessary, and avoid overheating the device. Monitor the device's temperature using the thermal monitoring pin (TMP) and take corrective action if the temperature exceeds the recommended limit.
To troubleshoot issues with the TPS2372-4RGWT, start by checking the input voltage, current, and power consumption. Verify that the device is properly configured and powered up. Use an oscilloscope to monitor the device's signals and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and fault detection mechanisms.
The TPS2372-4RGWT has built-in ESD protection and latch-up prevention mechanisms. However, it's still important to follow proper ESD handling procedures during device handling and PCB assembly. Use ESD-protective packaging and follow the recommended PCB layout guidelines to minimize the risk of ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2372-4RGWT Overview

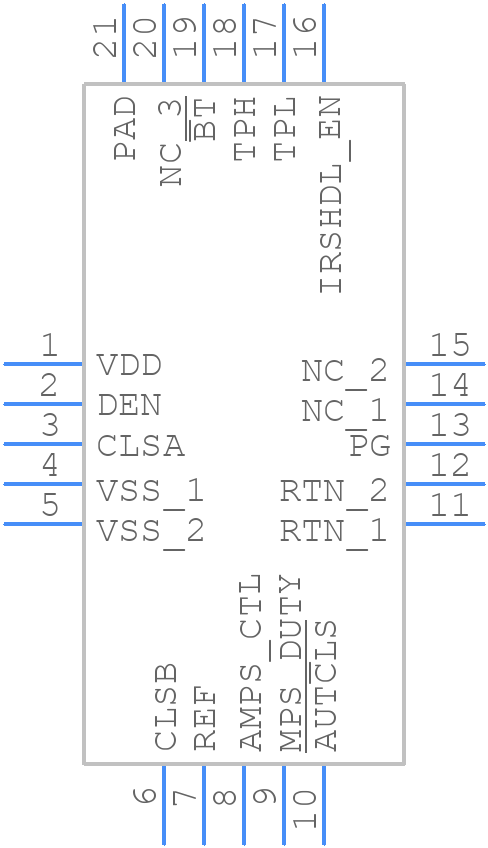

Use the download button to access the TPS2372-4RGWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
