A good PCB layout for the TPS23750PWPR involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured through the I2C interface.
The TPS23750PWPR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources. Additionally, ensure that the device is operated within the recommended temperature range.
To troubleshoot issues with the TPS23750PWPR, start by checking the power supply and input voltage, then verify the device configuration and I2C communication. Use an oscilloscope to monitor the device's signals, and check for any signs of overheating or electrical overstress. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the TPS23750PWPR can be used in non-PoE applications, but it requires modifications to the circuit design. The device's PoE detection and classification circuits can be disabled, and the input voltage range can be adjusted. However, it's essential to consult the datasheet and application notes to ensure proper operation and to avoid any potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23750PWPR Overview

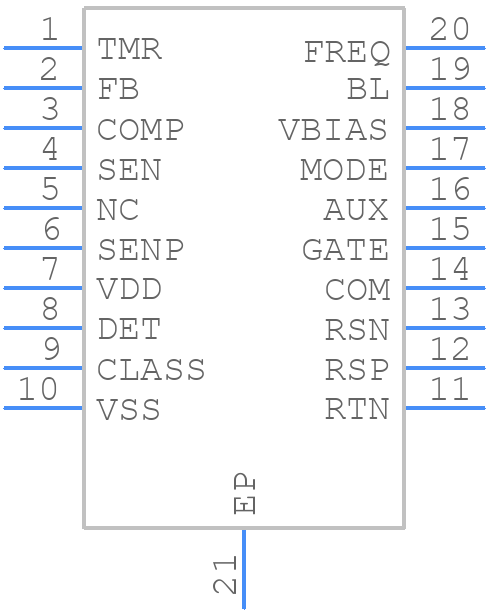

Use the download button to access the TPS23750PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
