TPS23758RJJR - Texas Instruments

Description: Power Switch ICs - POE / LAN IEEE 802.3at PoE PD with no-opto sync flyback DC-DC controller 23-VSON -40 to 125

Download TPS23758RJJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

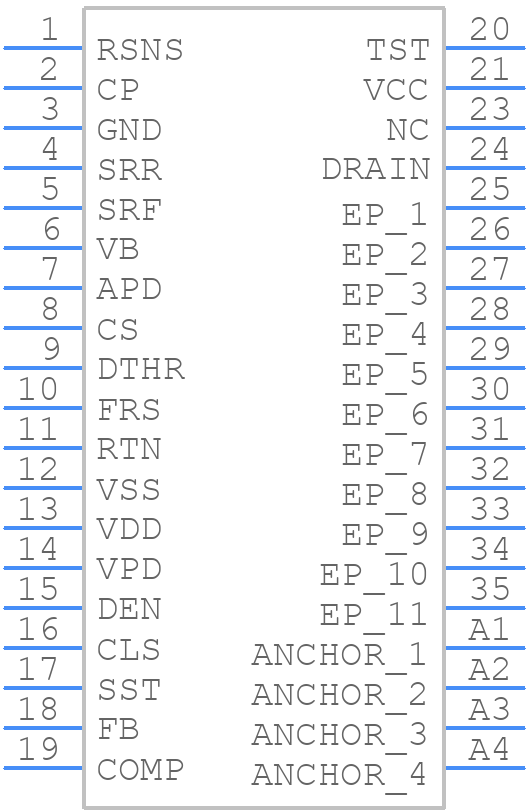

TPS23758RJJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23758RJJR - Texas Instruments PCB footprint - Other - Other - RJJ0023B_24
click to zoom
3D Models
TPS23758RJJR - Texas Instruments - 3D model - Other - RJJ0023B_24
click to zoom

TPS23758RJJR Details

  • Manufacturer Part Number:

    TPS23758RJJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-05-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    10.2 V

  • JESD-30 Code:

    R-PDSO-N23

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    23

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS23758RJJR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS23758RJJR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, choose ones with a low ESR and a high capacitance value. The recommended capacitance values are 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
  • The maximum ambient temperature range for the TPS23758RJJR is -40°C to 85°C. However, the device can operate up to 125°C junction temperature.
  • The TPS23758RJJR has a built-in overcurrent protection feature. To implement it, connect a resistor (RILIM) between the ILIM pin and the GND pin. The value of RILIM determines the overcurrent threshold. A lower value of RILIM sets a lower overcurrent threshold.
  • Yes, the TPS23758RJJR is suitable for high-reliability applications. It is designed and manufactured to meet the requirements of the automotive and industrial markets, and it has undergone rigorous testing and qualification to ensure its reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS23758RJJR Overview

Use the download button to access the TPS23758RJJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits
