TPS23758RJJT - Texas Instruments

Description: IEEE 802.3at PoE PD with no-opto sync flyback DC-DC controller

Download TPS23758RJJT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

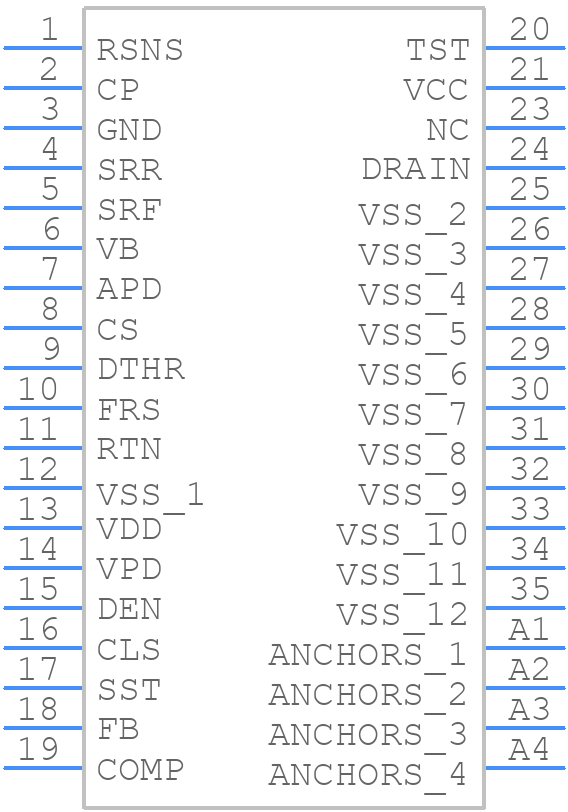

TPS23758RJJT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23758RJJT - Texas Instruments PCB footprint - Other - Other - TPS23758RJJT-3
click to zoom
3D Models
TPS23758RJJT - Texas Instruments - 3D model - Other - TPS23758RJJT-3
click to zoom

TPS23758RJJT Details

  • Manufacturer Part Number:

    TPS23758RJJT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-06-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    10.2 V

  • JESD-30 Code:

    R-PDSO-N23

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    23

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS23758RJJT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS23758RJJT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors for the TPS23758RJJT depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet provides more information.
  • The TPS23758RJJT has an operating ambient temperature range of -40°C to 85°C. However, the device can operate at higher temperatures with derating. Refer to the thermal characteristics section in the datasheet for more information.
  • The TPS23758RJJT has a built-in overcurrent protection feature. To implement it, connect a sense resistor in series with the output and connect the sense pin to the sense resistor. The device will limit the output current to the programmed value. Refer to the application notes for more information.
  • Yes, the TPS23758RJJT is suitable for high-reliability applications. It is designed and manufactured to meet the requirements of automotive and industrial applications. TI provides a reliability report and other documentation to support high-reliability applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS23758RJJT Overview

Use the download button to access the TPS23758RJJT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
