Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and layer changes.
The input capacitor should be selected based on the input voltage, current, and frequency. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. Additionally, the capacitor should have a low ESR (Equivalent Series Resistance) to minimize power losses.
The TPS2376DDAR-HG4 has an operating temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
To troubleshoot issues with the TPS2376DDAR-HG4, start by checking the input voltage, current, and frequency, as well as the output voltage and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Also, check the thermal design and ensure that the device is properly cooled. If the issue persists, consult the datasheet and application notes, or contact Texas Instruments support for further assistance.
The TPS2376DDAR-HG4 is a high-reliability device, but it's essential to follow the guidelines and recommendations in the datasheet and application notes to ensure the device operates within its specified parameters. Additionally, it's recommended to perform thorough testing and validation to ensure the device meets the specific requirements of the application. Texas Instruments also provides additional resources and support for high-reliability and safety-critical applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2376DDAR-HG4 Overview

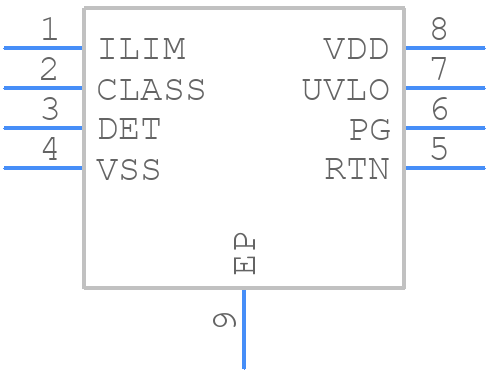

Use the download button to access the TPS2376DDAR-HG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
