The recommended layout for the TPS2377D involves placing the device close to the PoE (Power over Ethernet) connector, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to place a 10uF capacitor between the VCC and GND pins to filter out noise.
To ensure that the TPS2377D can handle high-power PoE applications, it's recommended to use a heat sink, ensure good thermal conductivity, and keep the device junction temperature below 125°C. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be within the specified range.
The classification pin (CLASS) on the TPS2377D is used to classify the device as a powered device (PD) or a powered device with a midspan power source (MPS). The classification pin is connected to a resistor network that determines the classification of the device.
The TPS2377D has built-in overvoltage protection (OVP) and undervoltage protection (UVP) features. The OVP feature limits the output voltage to 57V, and the UVP feature turns off the device when the input voltage falls below 30V. These features help protect the device and the system from voltage faults.
Yes, the TPS2377D can be used in non-PoE applications, such as in DC-DC converters or other power management systems. However, the device's features and performance may not be optimized for non-PoE applications, and additional components may be required to ensure proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2377D Overview

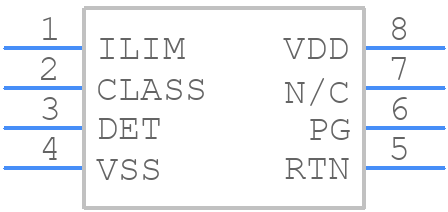

Use the download button to access the TPS2377D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
