A good PCB layout for the TPS2378DDA involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to place the input capacitors close to the device and use a common ground point for the input and output.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the EN pin, and finally the PD (Powered Device) load. Also, ensure that the EN pin is properly biased and the PD load is within the recommended range.
Thermal management is crucial for the TPS2378DDA. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads. Also, consider the device's thermal resistance and power dissipation when designing the system.
To troubleshoot issues with the TPS2378DDA, start by checking the input voltage, EN pin, and PD load. Verify that the device is properly powered up and configured. Check for any short circuits or open circuits on the output. Use an oscilloscope to measure the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the TPS2378DDA in a non-standard PoE application, ensure that the device is operated within its recommended specifications. Be aware of the potential risks of overheating, overvoltage, or undervoltage. Consult the datasheet and application notes for guidance on using the device in non-standard applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2378DDA Overview

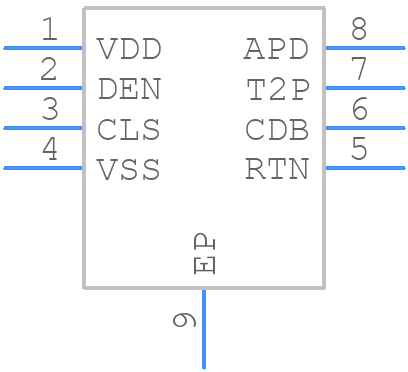

Use the download button to access the TPS2378DDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
