A good PCB layout for the TPS2379DDA involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to place the input capacitors close to the device and use a common ground point for the input and output.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured by setting the correct registers and bits.
Thermal management is crucial when using the TPS2379DDA. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider the thermal resistance of the PCB and the device's junction temperature to ensure reliable operation.
To troubleshoot issues with the TPS2379DDA, start by checking the input voltage, enable signal, and clock signal. Verify that the device is properly configured and that the registers are set correctly. Use an oscilloscope to check the voltage and current waveforms, and consult the datasheet and application notes for guidance.
When using the TPS2379DDA in a high-reliability or safety-critical application, consider the device's fault tolerance, redundancy, and fail-safe operation. Ensure that the device is properly tested and validated, and that the system is designed to mitigate potential failures. Consult the datasheet and relevant industry standards for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2379DDA Overview

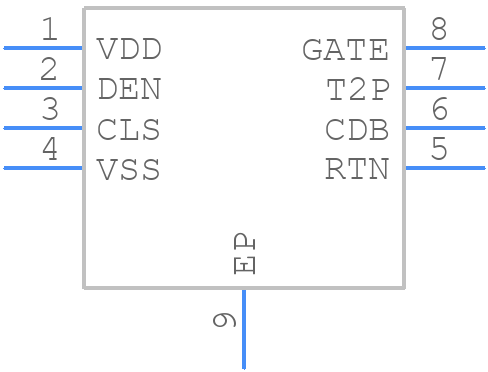

Use the download button to access the TPS2379DDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
