Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The input capacitor value depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the input voltage. TI also provides a capacitor selection guide in the datasheet.
The TPS2393APWR has an operating temperature range of -40°C to 85°C, but the maximum ambient temperature range depends on the specific application and thermal design. It's essential to consider the thermal dissipation and heat sinking requirements to ensure reliable operation.
Yes, the TPS2393APWR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
TI provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, engineers can use simulation tools like TI's WEBENCH or SPICE models to simulate the circuit and identify potential issues before prototyping.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2393APWR Overview

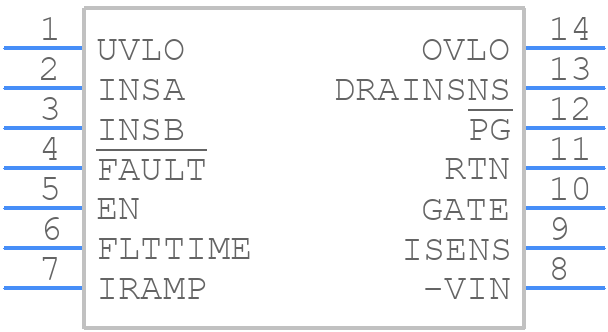

Use the download button to access the TPS2393APWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
