A good PCB layout for the TPS2399DGK involves placing the device close to the load, using short and wide traces for power and ground, and separating the input and output sections to minimize noise coupling. A solid ground plane and decoupling capacitors are also recommended.
The input capacitor should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A general guideline is to use a capacitor with a value of 10-22uF, X5R or X7R dielectric, and a voltage rating of 1.5-2 times the input voltage.
The TPS2399DGK can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's recommended to check the thermal derating curves in the datasheet to ensure the device can deliver the required output current.
The TPS2399DGK has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and GND. The value of the resistor determines the overcurrent threshold. A typical value is 1kΩ, which sets the threshold to around 3.5A.
The TPS2399DGK is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to check the thermal derating curves in the datasheet and ensure proper thermal management to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2399DGK Overview

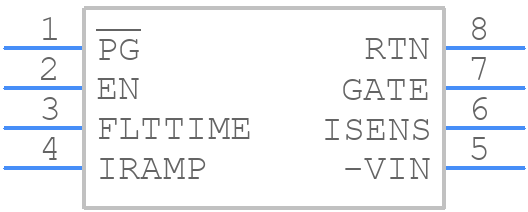

Use the download button to access the TPS2399DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
