TPS24740RGET - Texas Instruments

Description: 2.5 to 18-V High Performance Hot Swap and ORing Controller

Download TPS24740RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

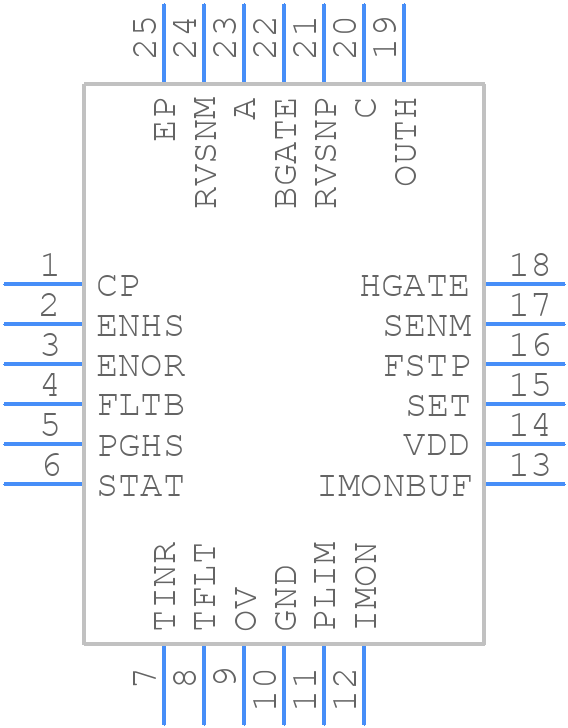

TPS24740RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS24740RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B_021
click to zoom
3D Models
TPS24740RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B_021
click to zoom

TPS24740RGET Details

  • Manufacturer Part Number:

    TPS24740RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS24740RGET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS24740RGET evaluation module (EVM) user's guide, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The input capacitor selection depends on the input voltage, current, and ripple requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that ensures the input ripple voltage is within the recommended range (typically 100-200 mV).
  • The TPS24740RGET is rated for a maximum output current of 4 A, but this can be limited by the thermal performance of the device and the PCB design. It's essential to consider the thermal derating curves and ensure proper thermal management to achieve the desired output current.
  • The TPS24740RGET is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's crucial to consider the thermal management and ensure the device operates within the recommended temperature range to maintain its performance and lifespan.
  • The TPS24740RGET has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value, and the device will limit the output current to prevent damage in case of an overcurrent event.
