Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-current PCB design guidelines, such as using wide traces, minimizing inductance, and placing decoupling capacitors close to the device.
The sense resistor value depends on the current sensing range and accuracy required for your application. A smaller sense resistor value provides higher accuracy but increases power loss, while a larger value reduces power loss but decreases accuracy. TI provides a sense resistor calculator tool to help with selection.
The maximum cable length depends on the specific application and the type of cable used. As a general guideline, TI recommends keeping the cable length as short as possible to minimize voltage drops and ensure reliable operation. For longer cable lengths, consider using a higher-gauge wire or adding additional voltage regulation.
The TPS24772RGER is designed to operate with input voltages between 4.5V and 60V. While it may be possible to use it with non-standard input voltages, this is not recommended as it may affect device performance, reliability, and safety. If a non-standard input voltage is required, consider using a different device or consulting with TI's technical support.
The TPS24772RGER has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the VOUT pin. The device will then limit the output current to the programmed value. Additionally, an external current sense resistor can be used to monitor the output current and trigger an interrupt or shutdown if an overcurrent condition is detected.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS24772RGER Overview

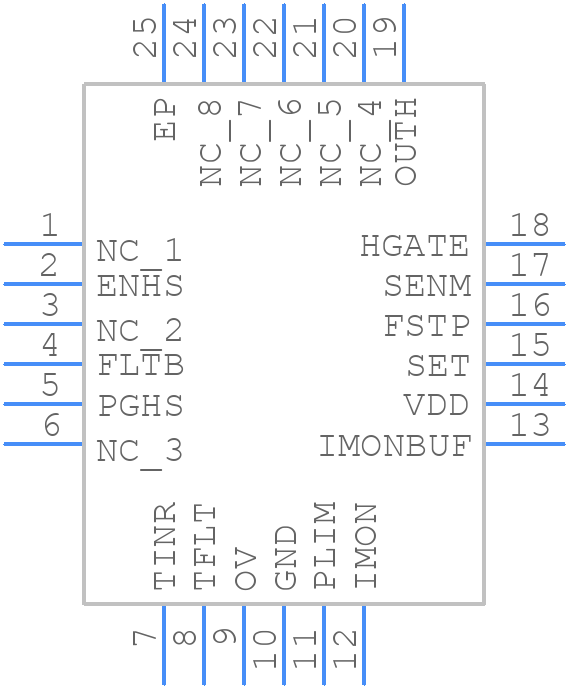

Use the download button to access the TPS24772RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
