TPS24772RGET - Texas Instruments

Description: Hot Swap Voltage Controllers 2.5 to 18V Hot Swap Controller

Download TPS24772RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

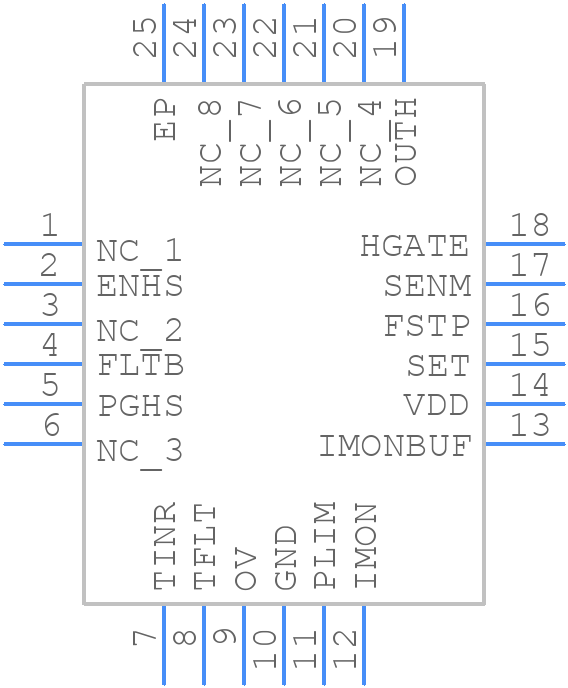

TPS24772RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS24772RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS24772RGET
click to zoom
3D Models
TPS24772RGET - Texas Instruments - 3D model - Quad Flat No-Lead - TPS24772RGET
click to zoom

TPS24772RGET Details

  • Manufacturer Part Number:

    TPS24772RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    HOT SWAP CONTROLLER

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    2.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    500 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS24772RGET Frequently Asked Questions (FAQs)

  • The TPS24772RGET can deliver up to 2.5A of current from the USB port, but this is dependent on the input voltage and the thermal conditions of the device.
  • The output voltage of the TPS24772RGET can be configured using the I2C interface. The device has a 7-bit DAC that allows the output voltage to be set between 0.6V and 3.3V in 10mV increments. The specific configuration depends on the application and the desired output voltage.
  • The EN (enable) pin is used to turn the device on and off. When the EN pin is high, the device is enabled and the output voltage is regulated. When the EN pin is low, the device is disabled and the output voltage is disconnected from the input voltage. The EN pin can be used to implement power-saving modes or to turn off the device when not in use.
  • The TPS24772RGET has built-in overcurrent protection (OCP) and short-circuit protection (SCP) features. When an overcurrent or short-circuit condition is detected, the device will limit the output current to prevent damage. The device will also automatically retry to regulate the output voltage once the fault condition is removed.
  • The thermal shutdown temperature of the TPS24772RGET is typically around 150°C. When the device temperature exceeds this threshold, the device will shut down to prevent damage. The device will automatically restart once the temperature drops below the thermal shutdown temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS24772RGET Overview

Use the download button to access the TPS24772RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
