Texas Instruments provides a recommended PCB layout in the TPS2481PW datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to ensure optimal performance, low EMI, and high reliability.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general rule of thumb is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value of 10uF to 22uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the switching frequency and output current.
The EN (Enable) pin is an active-high input that enables or disables the TPS2481PW. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system. Connect EN to a logic signal or a voltage source, and ensure it is properly bypassed to prevent noise and oscillations.
The output voltage of the TPS2481PW is determined by the resistive divider network connected to the FB (Feedback) pin. The output voltage is calculated using the formula: Vout = (R1 / R2) * 0.8V, where R1 and R2 are the resistors in the divider network. Choose R1 and R2 to achieve the desired output voltage, and ensure the resistors are of high precision and low tolerance to maintain accuracy.
The TPS2481PW is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance, efficiency, and reliability may degrade at extreme temperatures. Ensure proper thermal management, such as heat sinking and airflow, to maintain the device within its recommended operating temperature range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS2481PW Overview

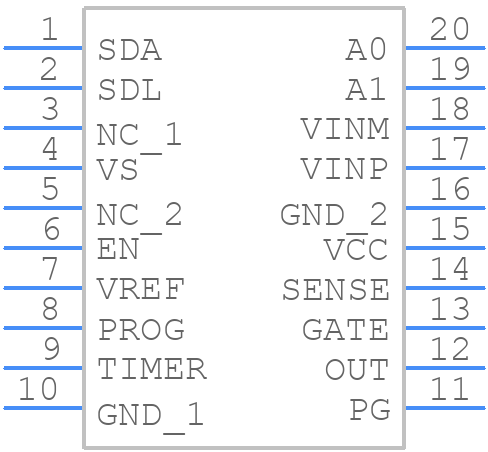

Use the download button to access the TPS2481PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
