TPS2511QDGNQ1 - Texas Instruments

Description: Automotive Catalog USB Dedicated Charging Port Controller and Current Limiting Power Switch

Download TPS2511QDGNQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

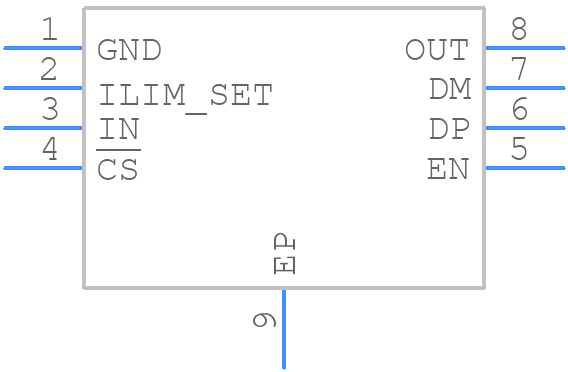

TPS2511QDGNQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2511QDGNQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008E PowerPAD VSSOP - 1.1 mm max height
click to zoom
3D Models
TPS2511QDGNQ1 - Texas Instruments - 3D model - Small Outline Packages - DGN0008E PowerPAD VSSOP - 1.1 mm max height
click to zoom

TPS2511QDGNQ1 Details

  • Manufacturer Part Number:

    TPS2511QDGNQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.23 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2511QDGNQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS2511QDGNQ1 involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the output voltage. The capacitance value should be based on the required ripple current and output voltage ripple.
  • The maximum ambient temperature range for the TPS2511QDGNQ1 is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C.
  • To ensure stability, use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range, and the output voltage is set correctly using the FB pin.
  • Yes, the TPS2511QDGNQ1 is a high-reliability device, with a failure-in-time (FIT) rate of less than 10 FIT. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specifications.
